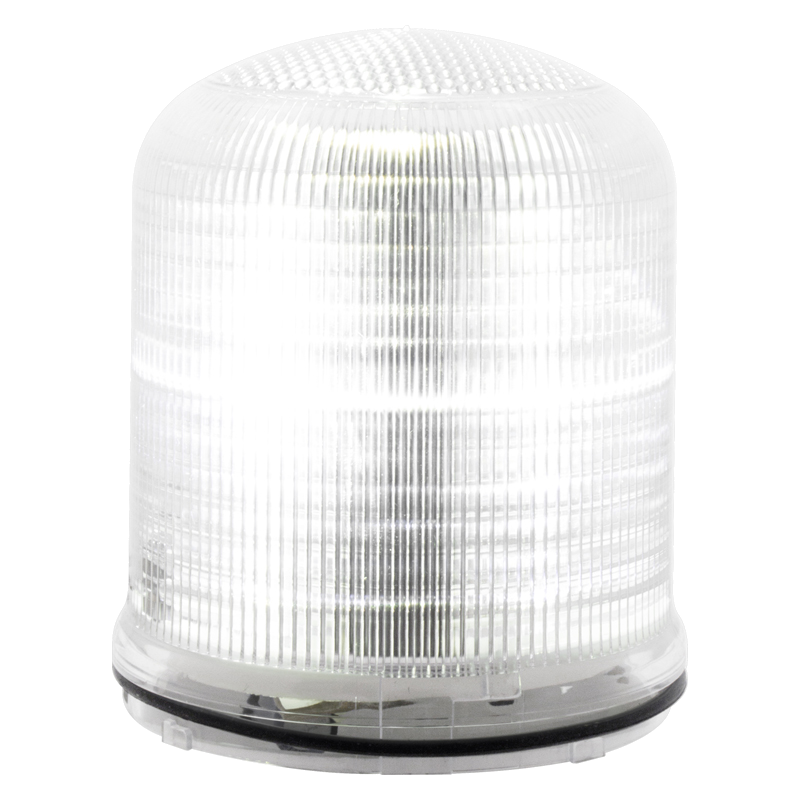

PIPS module single flash/quintuple flash/random white

Art. code: PL205

(0 review)

Price: on demand 0.0 EUR

Brand
- PIPS
Voltage
- Depending on the installed base
Rated current
- 12V AC/DC 450mA / 24V AC/DC 700mA / 40V AC/DC 800mA / 80V AC/DC 250mA / 120V AC 150mA / 240V AC 60mA
Light source
- LED
LED life
- 100 000h
LEDs colour
- White
Colour lens
- White
Luminous intensity
- 400cd
Light patterns
- Blinking and flashing
Particularities
- Blinks ± 110x1/minute, flashes ± 72x5/minute or in a random pattern
Ingress protection
- IP66
Operating temperature
- -30°C to +50°C
Dimensions
- Ø92mm x 107,5mm
Weight
- 200g
Certificates, quality marks, markings
- CE, UL type 4X, EAC
UL certificate
- Yes
CE certificate
- Yes
Type
- PIPS module

This combination does not exist.

Do you already have an account?

With your account you can see all your prices, stock and you can order quickly and easily.

Specifications Downloads Accessories Download datasheet

Good to know

This module has a very high luminous intensity due to the use of 2x SuperBright LEDs, with inner Fresnel lens. With the multi-channel technology you can easily switch the different light effects externally.
